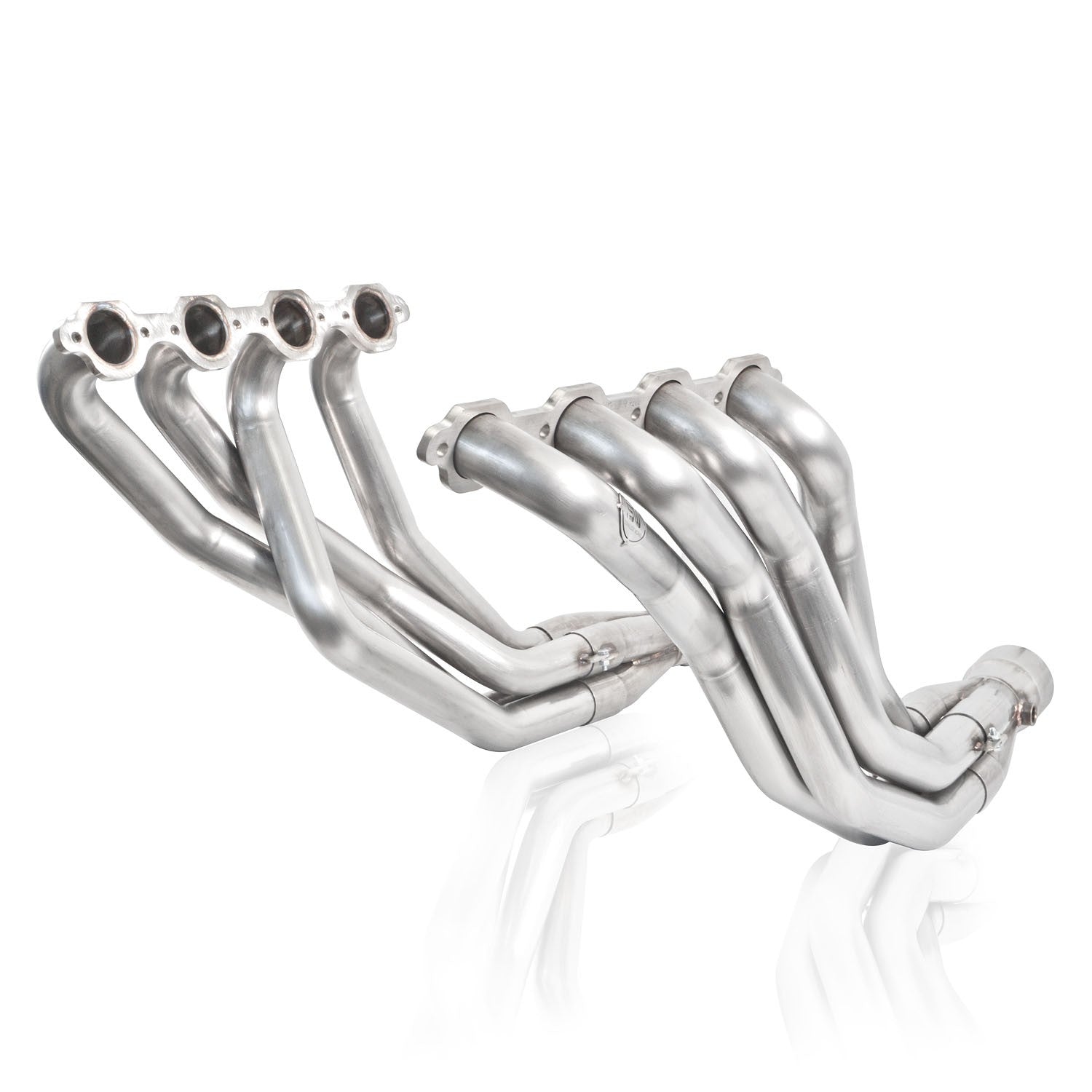

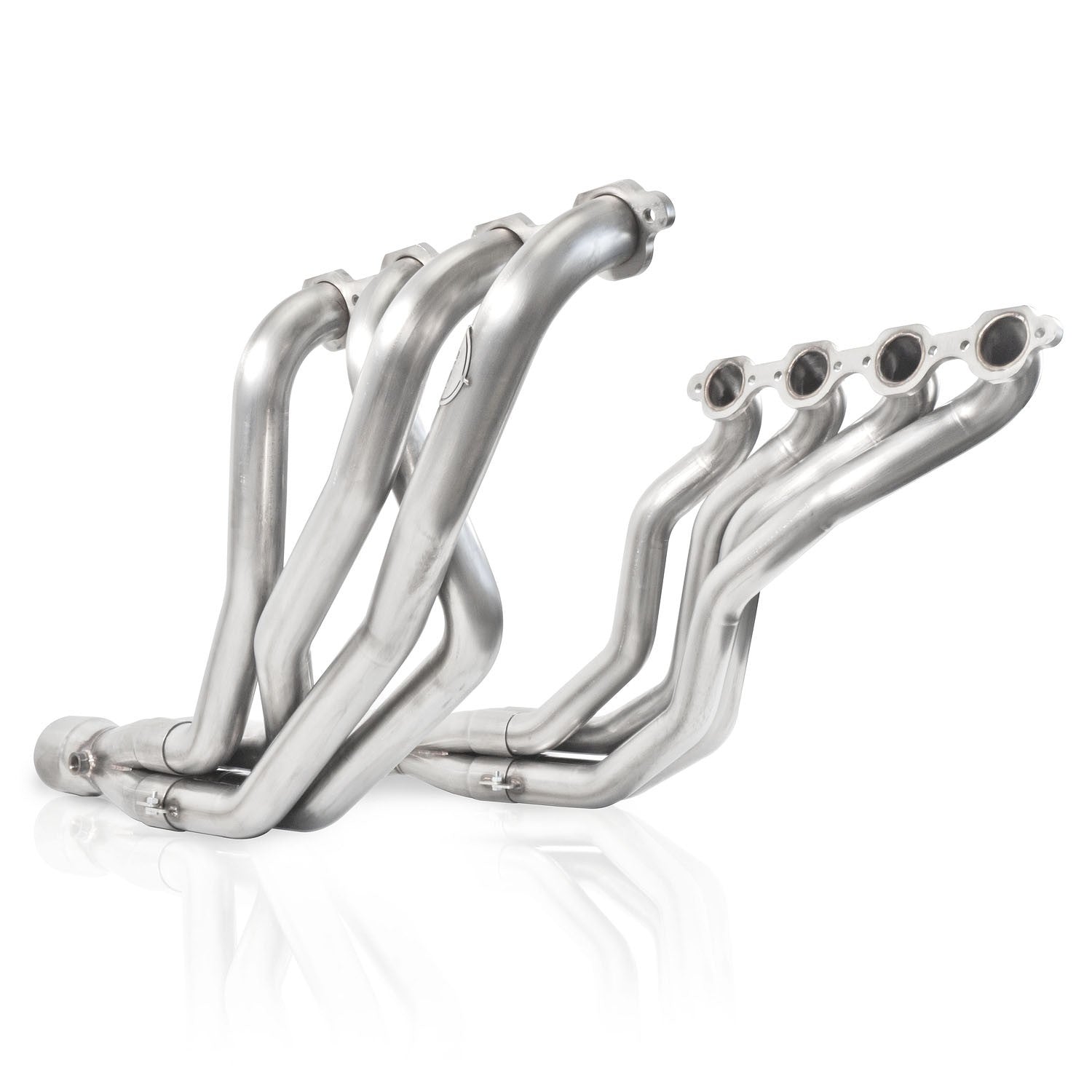

1979-93 Ford Mustang Foxbody Headers with 2” diameter primaries and 3.5” OD (outside diameter) merge collectors for 9.5" tall deck aftermarket heads.
Designed for use with cylinder heads that have a 3” wide horizontal in-line bolt pattern across the cylinder ports. Set up to work with TH400 auto transmission, and works with either UPR or AJE K-members / trans-crossmembers.
Headers fit the following heads for the 9.5” tall deck:
> AFR 205/225
> Dart 210/225
> Ford Performance Z304
> Pro Topline
> World Windsor Jr/Sr

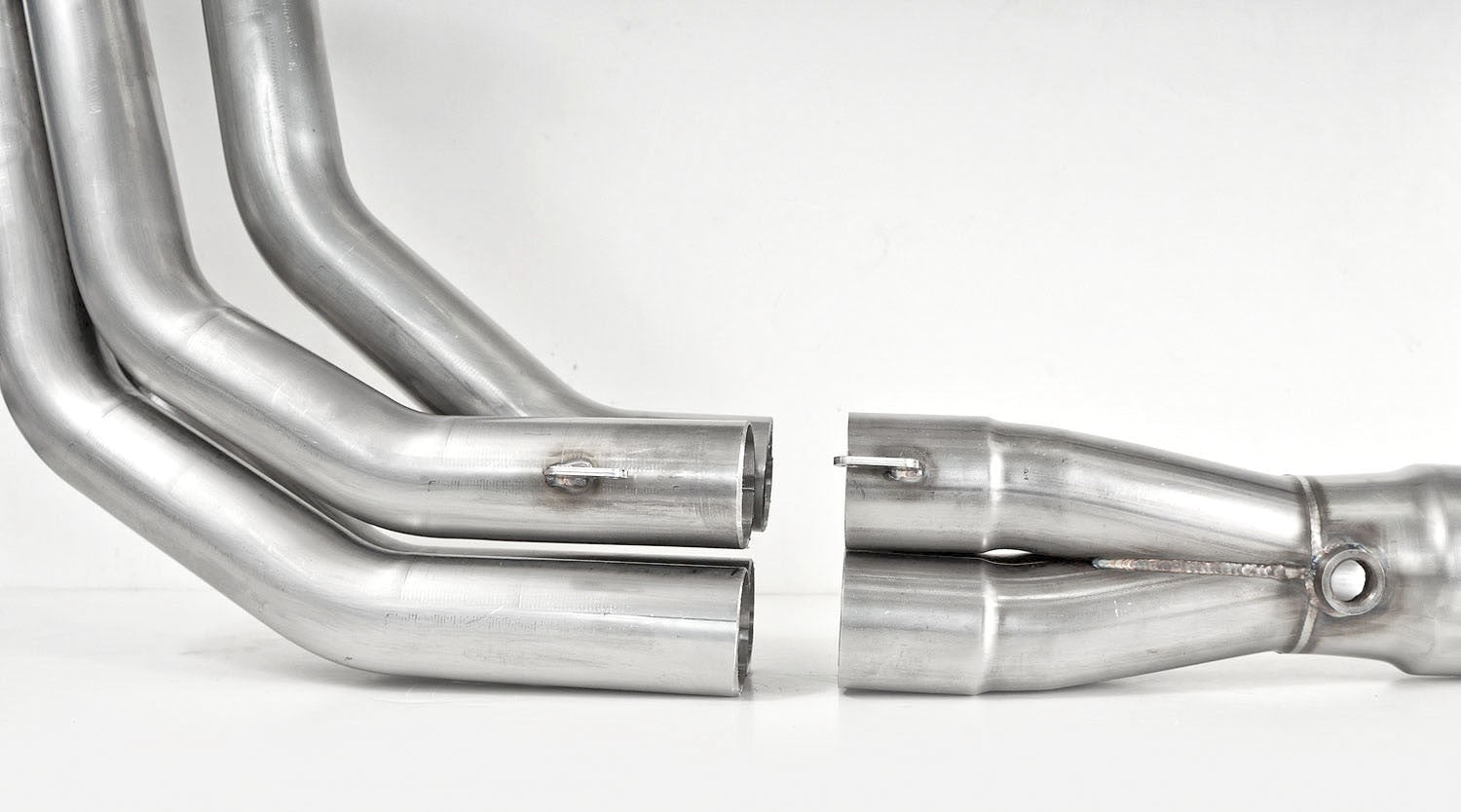

Our Foxbody headers have been specifically designed for each cylinder head for optimum fitment and an easy install. They are engineered to tuck up close to vehicle for great ground clearance, while leaving ample space for spark plug wires. The addition of our removable merge collector allows for even greater flexibility during installation.
> Available With Two Primary Sizing Options
> O2 Bungs
> Four-Way Merge Collector

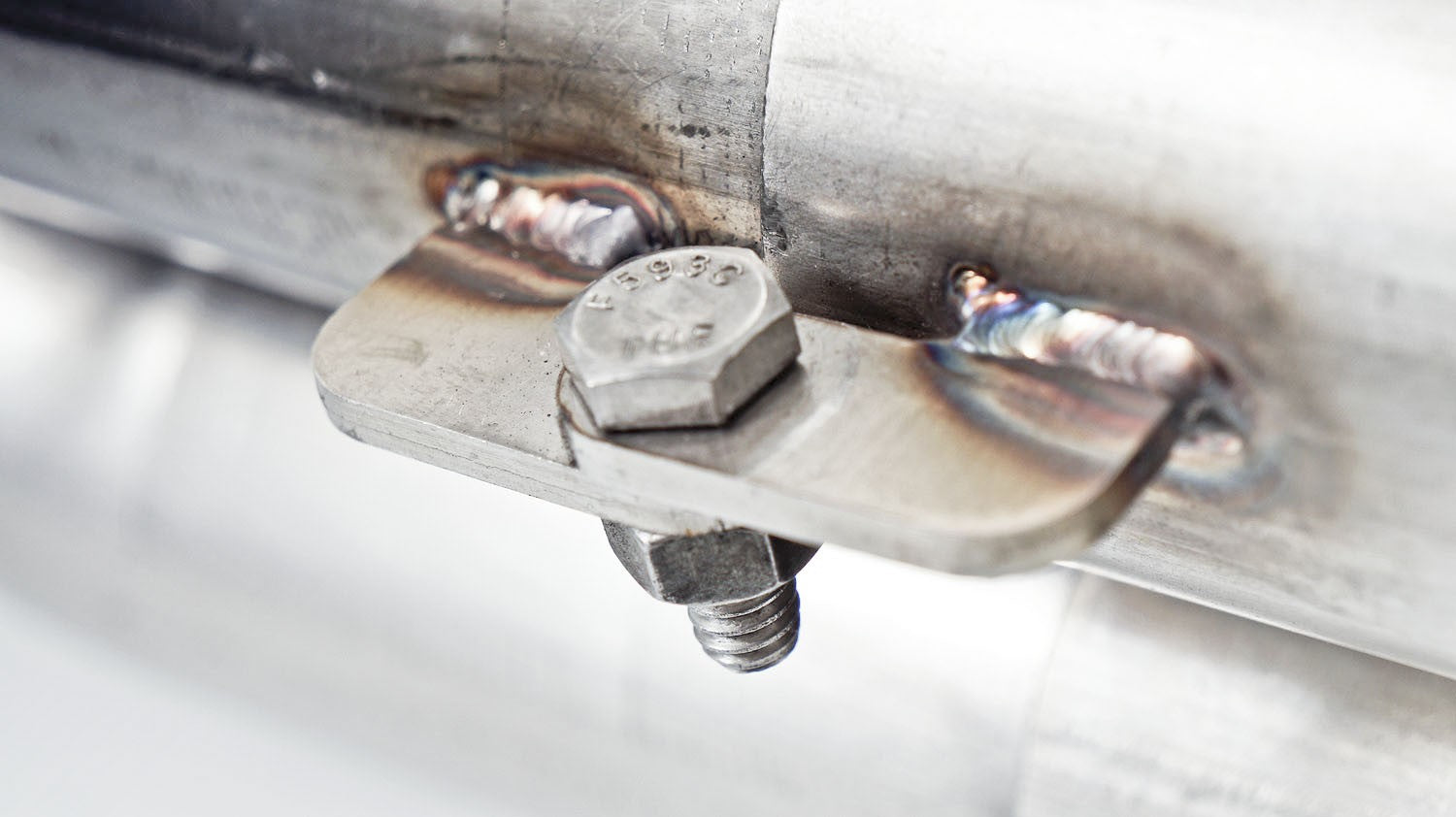

> Collector Tabs
> Proudly Made In The USA
> 304 Stainless Steel

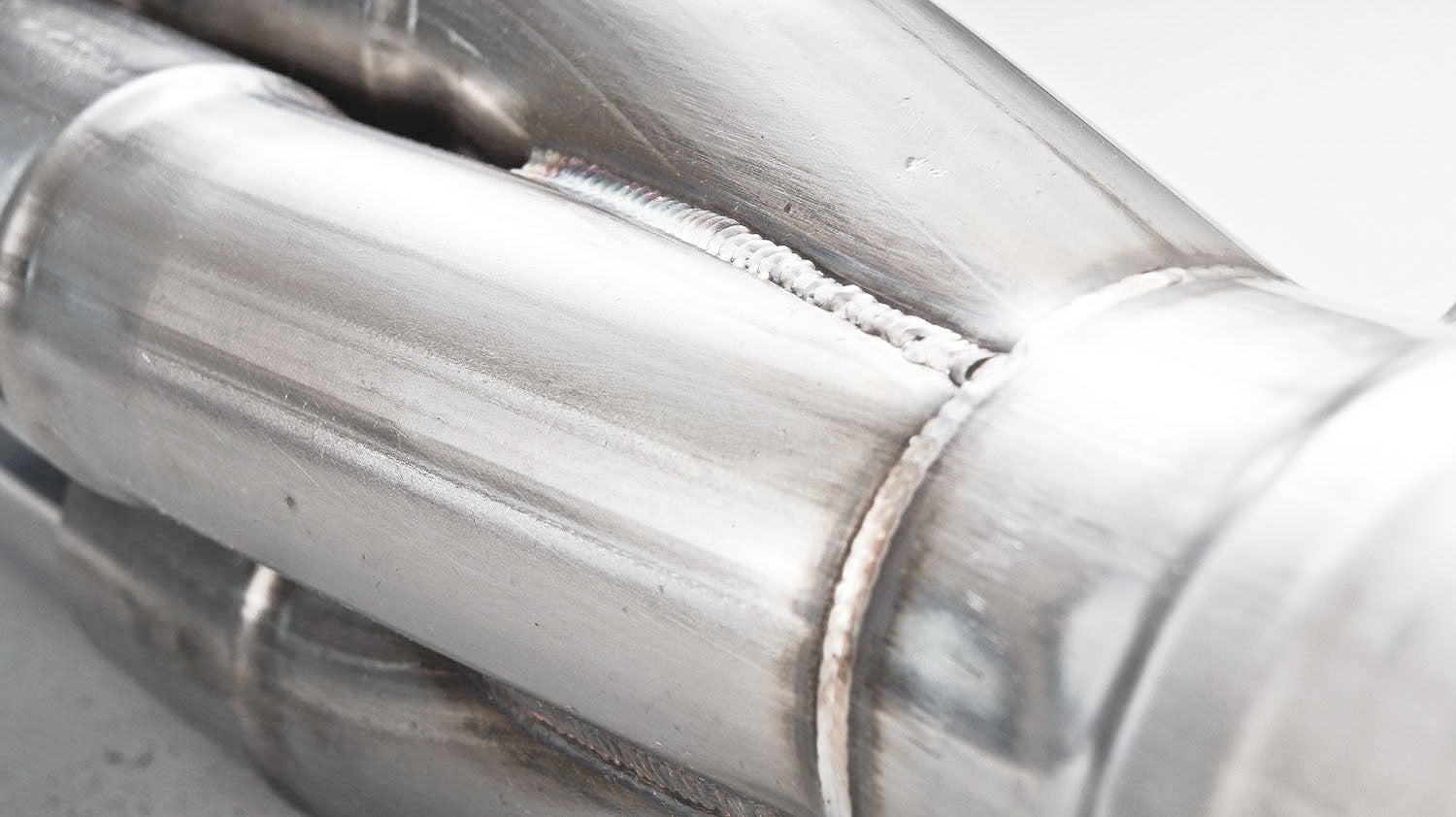

> Fully TIG Welded
> CNC Mandrel Bent
> No Cut & Welds (All Single Piece Primaries)

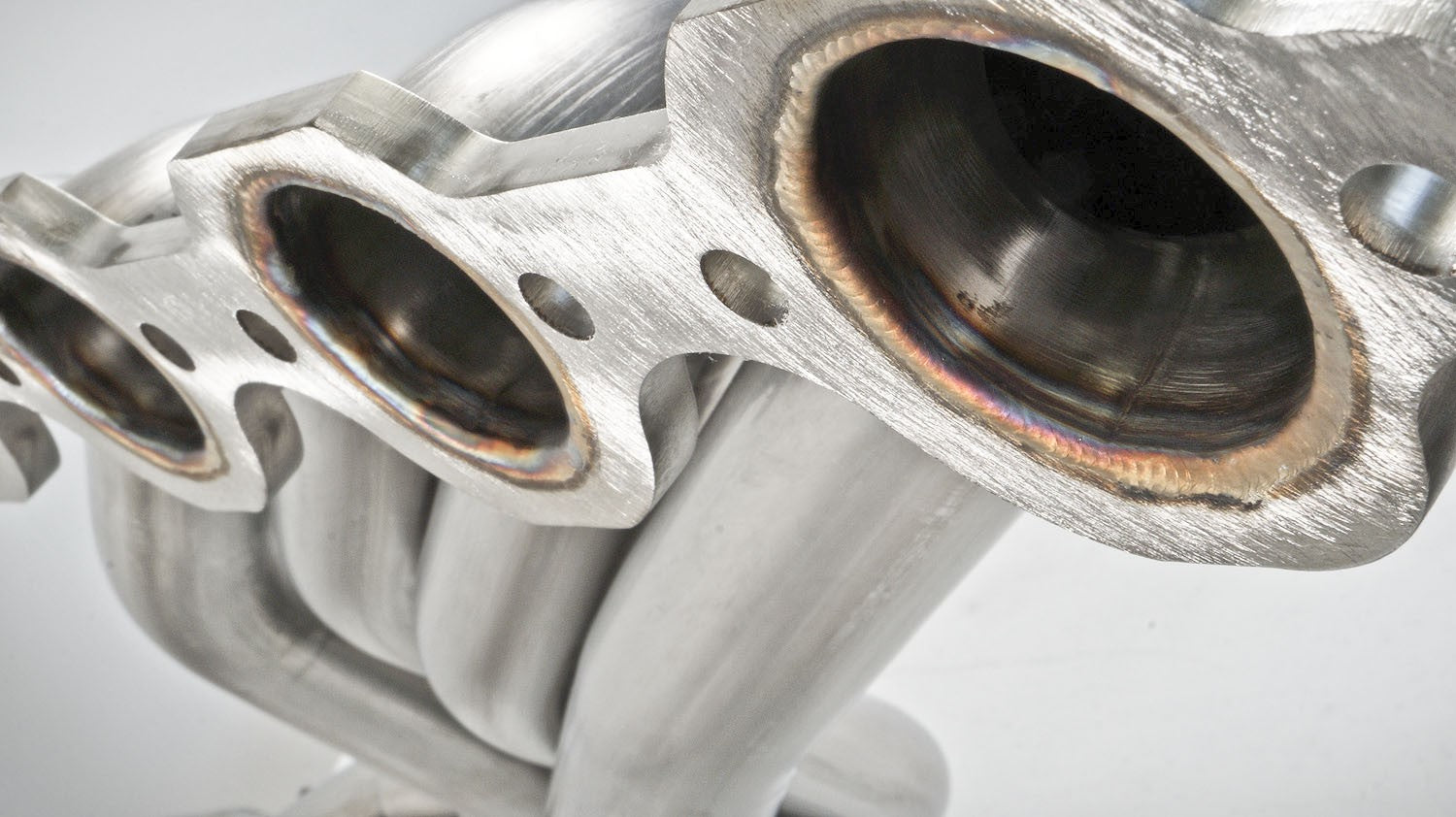

> 3/8-inch Thick Heavy Duty Flanges
